Introduction

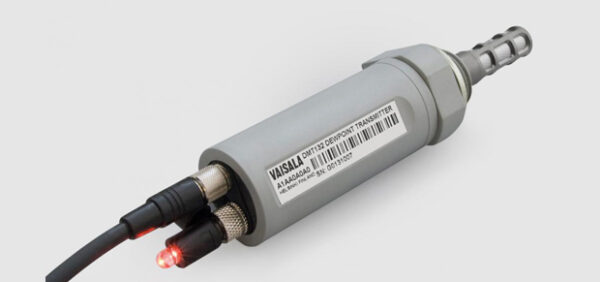

The Vaisala HUMICAP® Dewpoint Transmitter DMT132 is an affordable dew point measurement instrument designed to verify the functionality of refrigerant dryers. It is especially well suited for OEM dryer manufacturers.
Features & Benefits
- Affordable dew point transmitter for refrigerant dryers
- High accuracy ±1 °C (±1.8°F) in the measurement range of refrigerant dryers
- Excellent long-term stability – resistant to compressor oil and most other chemicals thanks to HUMICAP® technology
- Low power requirements, 10 … 28 VDC
- Easy to verify functionality with compatible hand-held meters DM70 or HM70
- Optional LED warning light
Datasheet
Download the latest Datasheet
The Vaisala HUMICAP Dewpoint Transmitter DMT132
Applications
Direct outlet air dew point measurement provides accurate information about dryer functionality and is more reliable than the traditional method of measuring refrigerator temperature only. Knowledge of the real dew point ensures high quality compressed air at all times and enables customers to optimize dryer capacity.
The DMT132 provides optimal performance in the operating range of refrigerant dryers. In the measurement range of -3 … 20 °C (+26.6 … +68 °F), where the refrigerator dryers typically operate, the Td accuracy is ±1°C (±1.8°F). The instrument incorporates the proven Vaisala HUMICAP® sensor, which is resistant to compressor oil and most other chemicals, thereby providing excellent long-term stability.
It takes just a few minutes to install the DMT132 directly into a dryer or compressed air line through a G1/2″ thread. Vaisala sampling cells can also be used.
