Introduction
For high precision measurements in demanding HVAC applications

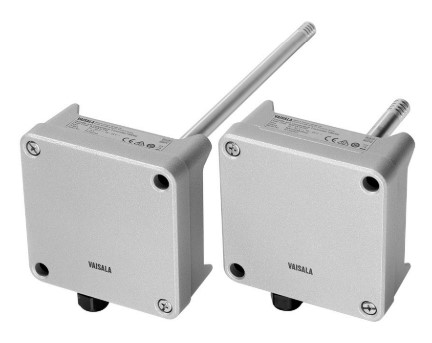

The sturdy and reliable duct mounted HMD60 transmitter is designed for measuring air humidity and temperature in demanding HVAC systems. The combination of high accuracy, excellent measurement stability and reliable operation makes this product an ideal choice for applications with the highest requirements.
Features & Benefits
- ±1.5 %RH, ±0.1 °C / ±0.18 °F accuracy measurements in air ducts
- Robust and reliable, IP66 rated all metal body
- Traceable calibration (certificate included)
- Analog, Modbus RTU and BACnet MS/TP output options
- Optional parameters: dew point, wet bulb, enthalpy, absolute humidity, mixing ratio
- Optimal choice for demanding building automation and HVAC process control
- Humidity models: HMD60 (configurable), HMD62, HMD65
Datasheet
Download the latest Datasheet
HMP7 Relative Humidity and Temperature Probe
Probe heating functionality heats up not only the sensor, but the whole probe head. When probe temperature is heated above dew point temperature, condensation on the probe can be avoided while measuring the dew point temperature of the process. By setting the temperature compensation value obtained, for example, with the TMP1 temperature probe, true relative humidity at process temperature can be measured while avoiding condensation by elevated probe temperature.
Indigo transmitters offer a variety of connectivity options through analog signals or digital outputs, configurable relays, and wireless (WLAN) configuration interface, providing a suitable solution for all industrial humidity measurements. The cable length between the probe and transmitter can be extended to up to 30 meters.
The probe is plug and play compatible with Vaisala Indigo™ series of transmitters, or it can be used as a standalone digital Modbus RTU transmitter over RS-485 serial bus. For easy-to-use access to field calibration, device analytics, and configuration functionality, the probe can be connected to Vaisala Insight™ Software.
Each probe is manufactured and individually calibrated in Vaisala’s world class facility in Finland. The traceable factory calibration certificate is included also in electronic format in the probe. Validate and maintain the accuracy by calibrating the instrument on the field, or use Vaisala’s easy and thorough calibration services.
